Description

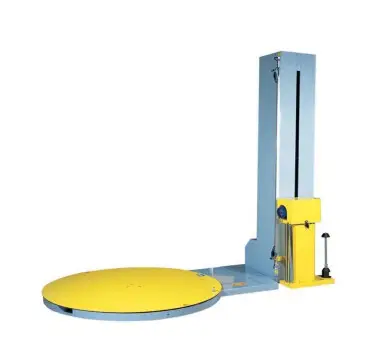

2 Ton Pallet Wrapper

Control System:PLC+ Screen control

Diameter of turntable:1500mm

Max pallet height:2000mm

Max pallet weight:2000kg

Film reel inside diameter:75mm

Film reel outside diameter:250mm

Turntable speed:1-10 cycles/Minute

Turntable height:80mm

Turntable motor:0.75kw

Film-rack lift motor:0.18kw

Power supply:220V 50HZ 1Phase

Precise phase stopping at cycle end

Photocell to read pallet height

Mechanical stretch

Soft start and stop

Variable turntable speed

Screen control

Bottom pallet wrapping rounds from 1-10

Top pallet wrapping rounds from 1-10

Rotation speed adjustable from 3 to 10 rpm
